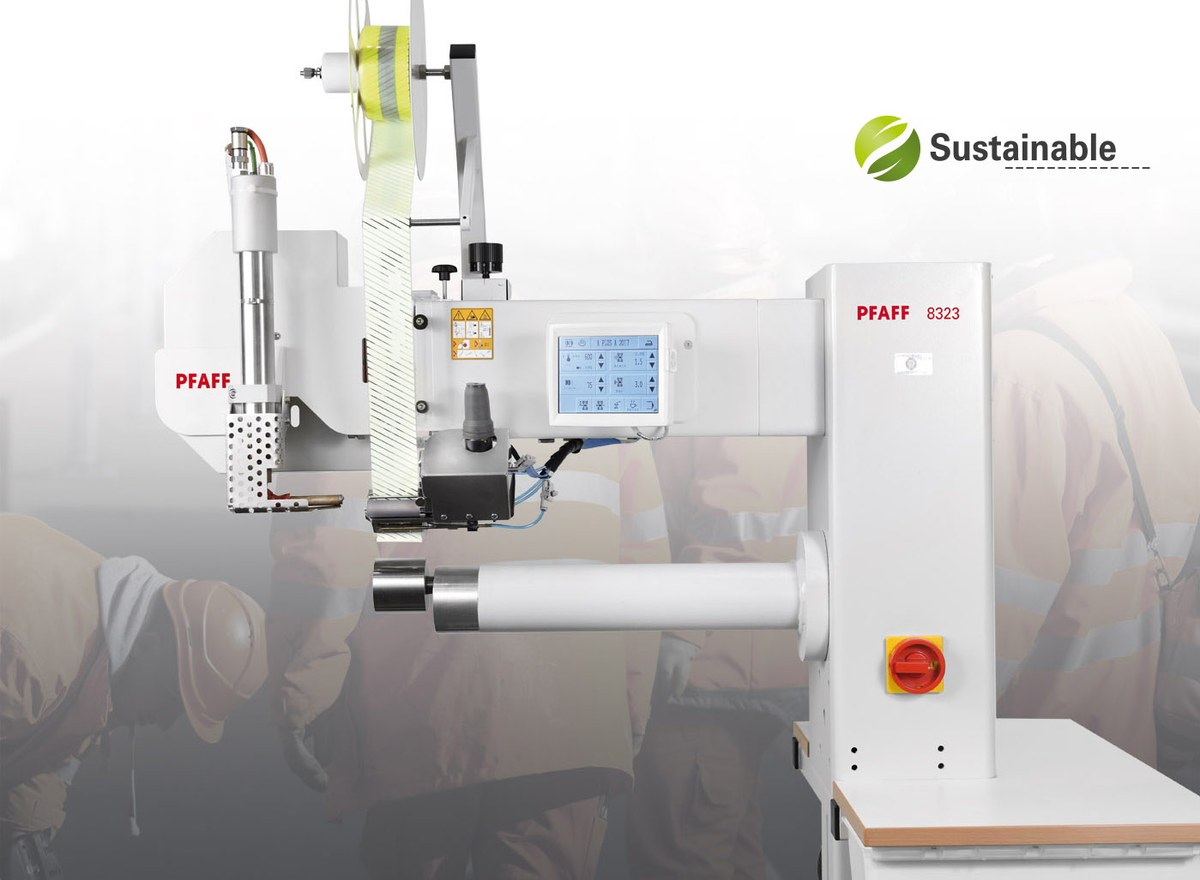

PFAFF 8323 reflective strips

Hot-air welding machine for welding of reflective strips
Schutzbekleidung / Protective ClothingSchutzanzüge / Protective SuitsSportbekleidung / Sportswear
Freiarm / Cylinder armSchwenkarm / Swivel armStehende Säule / Vertical postBandschweißmaschine / Hot-air tape welding machineBandabschneider / Tape-cutterSD-Card Leser / SD-Card readerTouchscreen / Touchscreen

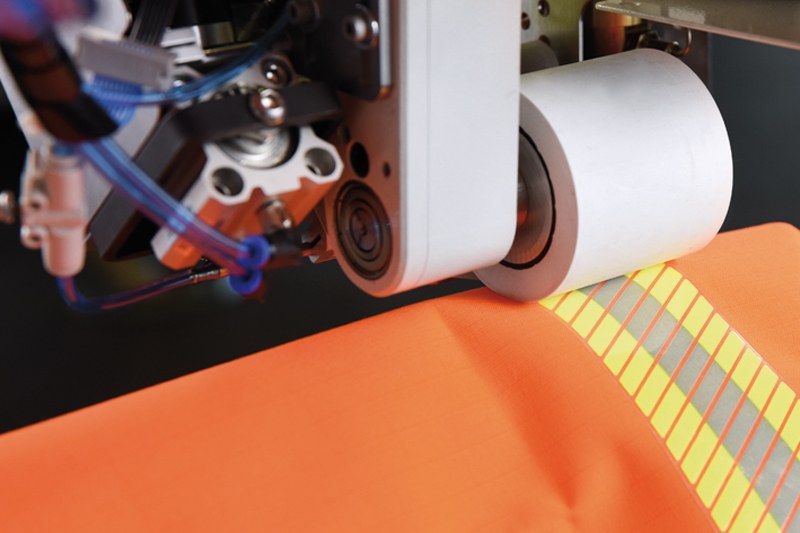

PFAFF 8323 reflex2


With the PFAFF 8323 sealing sequences can be programmed, i.e. depending on the cutting and the fabric any parameters can be entered for any given segment and reproduced with 100% accuracy.
An absolute innovation from PFAFF!

Features

  • Modern method for applying reflex strips in highest quality
  • Up tp 70% time savings compared to conventional processing
  • Touch-control-panel P1 with integrated SD card reader and USB slot. The P1 guarantees an intuitive operation

P1

  • Different user accounts protected by password (e.g. : fixed parameters by operators)
  • Programmable segments
  • Automatic monitoring and constant of all programmed parameters
  • Variable post system (Freearm, feed-off the arm and arm with post)
  • Rollers with up to 80 mm
  • Exact reproducible nozzle-settings possible through cross-slide
  • Programs and parameters can be transferred to other machines
  • Nozzle position is maintained to material for cross-stitching (seam bulge)
  • Tape cutter up to 50 mm
  • Software update via download possible

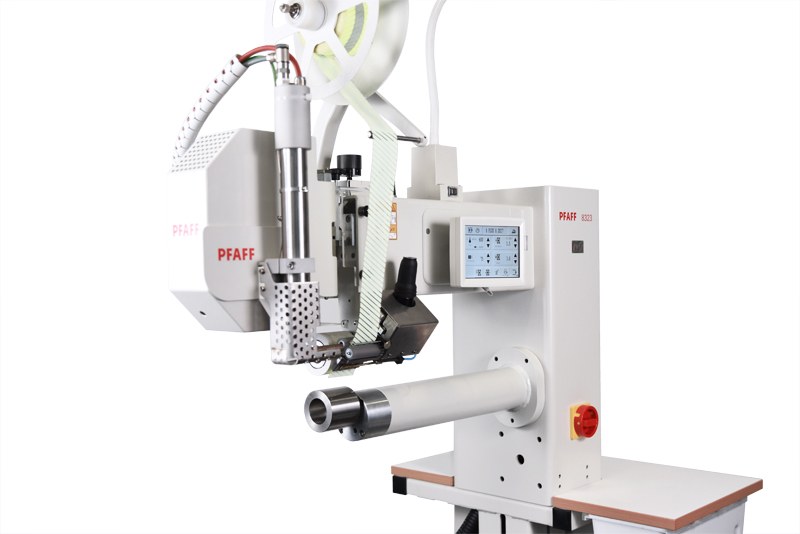

 8323 head 2

Applications

Work-, sports-, protective- and safety wear

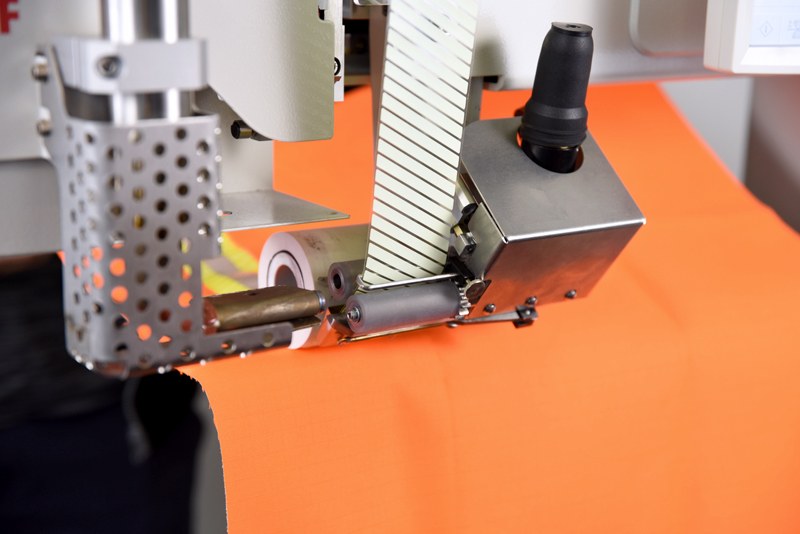

PFAFF 8323 Detail18323 reflex detail2

Specifications

Sealing temperature: max. 800 °C
Sealing speed: max. 10 m/min (standard), option up to 20 m/min available
Width of nozzles: 10 - 50 mm (others available)
Power input: approx. 3500 W
Heating capacity: approx. 3300 W
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
