PFAFF 3688-111, 211

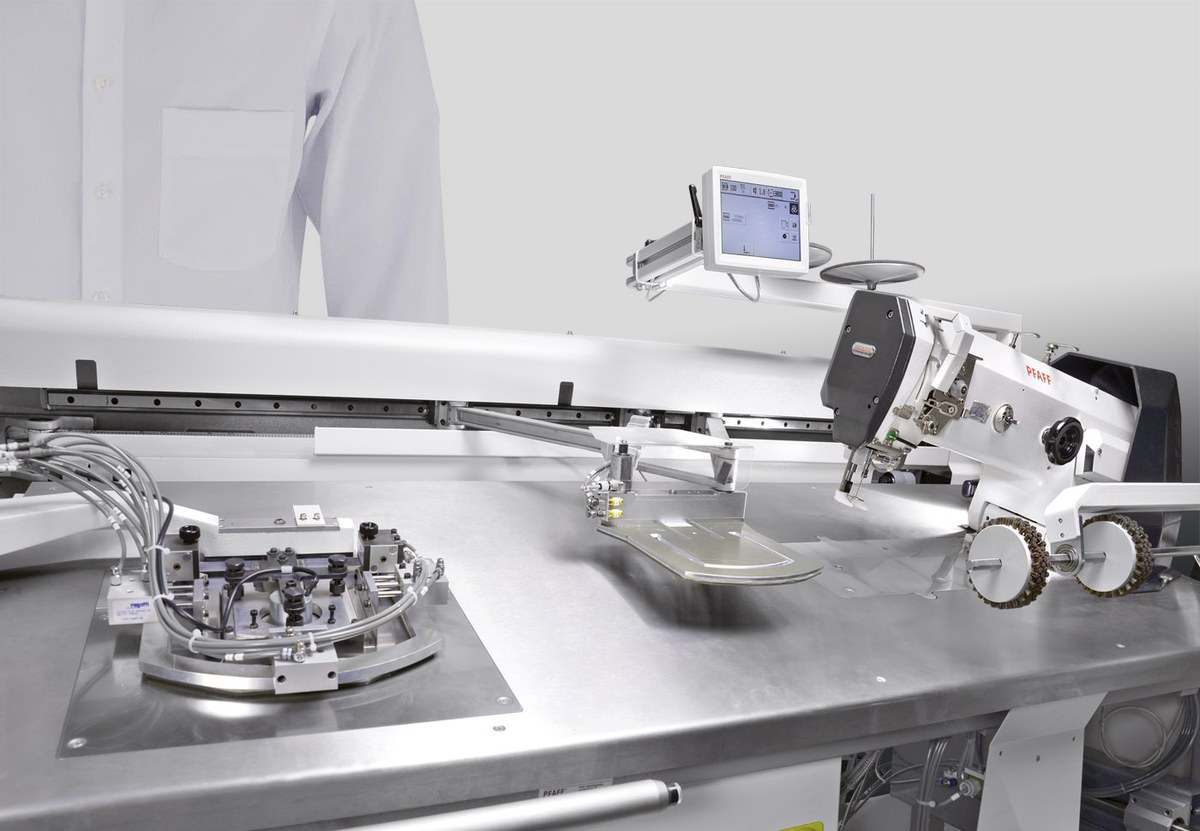

Programmable automatic pocket setter for shirts and blouses
Herren Hemd / Men's ShirtDamenblusen / Ladies blousePoloshirt / T-Shirt
Flachbettmaschinen / Flat bed machinesHorizontalgreifer, klein / Horizontal hook, smallStichtyp Doppelsteppstich / stitch type lockstitchAnzahl der Nadeln / Number of needlesFadenanzahl / Number of theadsFadenabschneider / Thread trimmerFadenklemmeinrichtung / Thead nipper devicePressefussautomatik / Automatic presser foot liftOberfaden-Überwachung über Sensor / Top Bobbin thread monitor via sensorX - Y Antrieb / X - Y driveGroßteilestapler / Large part stackerSD-Card Leser / SD-Card readerUSB Anschluß / USB connectionTouchscreen / TouchscreenOption - Kleinteilestapler / Small part stacker

PFAFF 3588-12...

Quality standards

Freely programmable automatic sewing unit for sewing pockets on shirts and blouses. Pockets are not only functional, but also an important part of fashion, since they are very prominent on garments perfect workmanship is imperative.
This is especially true, when functionality is combined with decoration.

„Best possible ergonomics, highest productivity and exceptional operating comfort characterizes this automated machine“

Features

  • PFAFF 3688-111 Sewing area 250 x 250 mm
  • PFAFF 3688-211 Sewing area 280 x 280 mm
  • For processing pre-folded and un-folded pockets (in combination)
  • The intermittent material feed reduces hook wear to a minimum and allows stitch lengths of 8 mm
  • Individual seam programming and exact seam correction for different materials guarantee a highly sewing reliability and consistant quality
  • Superior sewing results even if setting pockets with radii < 20 mm
  • Individually designing and programming of decorative seams
  • Easy loading and positioning of work piece due to a 15 degree tilted work surface (ergonomic + comfortable)
  • Rapid replacement of style kits: A fixed "zero point" makes it possible to us different style kits without time consuming re-adjustments
  • Special PFAFF sewing head for automatic units with tilt sewing head
  • High productivity, due to constant maximum sewing speed (4,000 s.p.m.) without speed reduction in corners or on bartacks

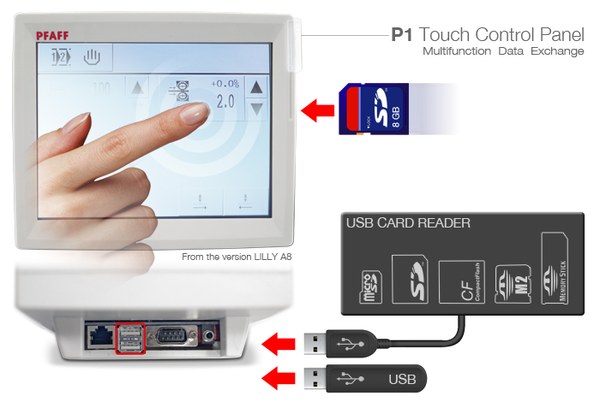

  • Touch control panel P1 (with SD card reader) displays all machine parameters in easily understandable symbols
  • NEW: Electronically-controlled thread tension
  • NEW: Direct drive and infeed slide with servo drives
  • NEW: Network connection (PFAFF CONNECT)
  • NEW: Adjustable vacuum strength
  • NEW: Basic kit "solenoid" - standard on all machines



P1

Options

  • Efficient combination of two operations with optional style kits to set pockets and attach flaps in one operation or insert labels
  • Machine height adjustment activated on the touch screen control panel P1
  • Small parts stacker

Applications

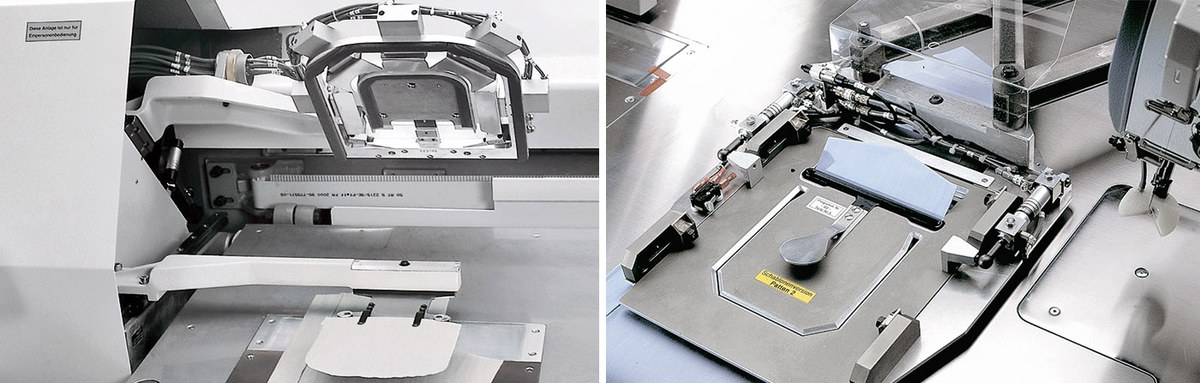

Automatic creasing and attaching of shirt pockets
Anwendungsbeispiel 3588-12/...

Specifications

Needle system: 134
Needle size: 70 - 110 Nm
Max. stitch length: 6,0 mm
Max. sewing speeds:
PFAFF 3588-111
4.000 s.p.m
PFAFF 3588-211 3.600 s.p.m
Stitch type: 301 (Lockstitch)
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
