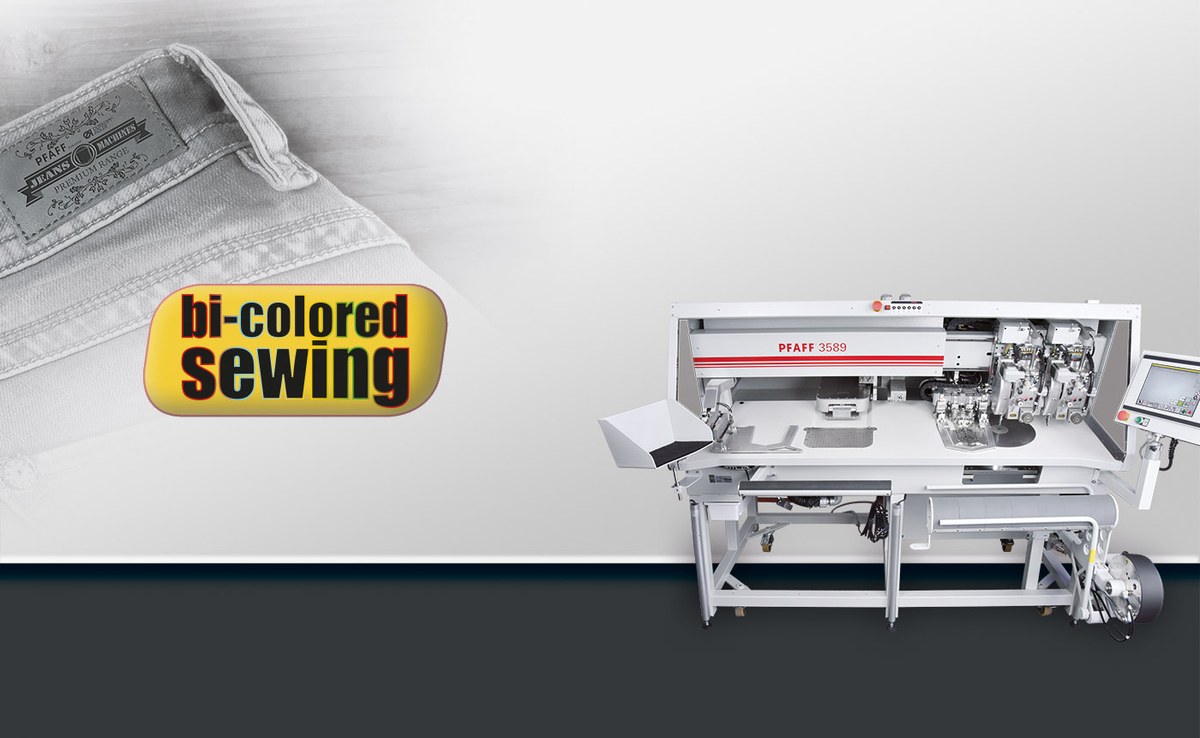

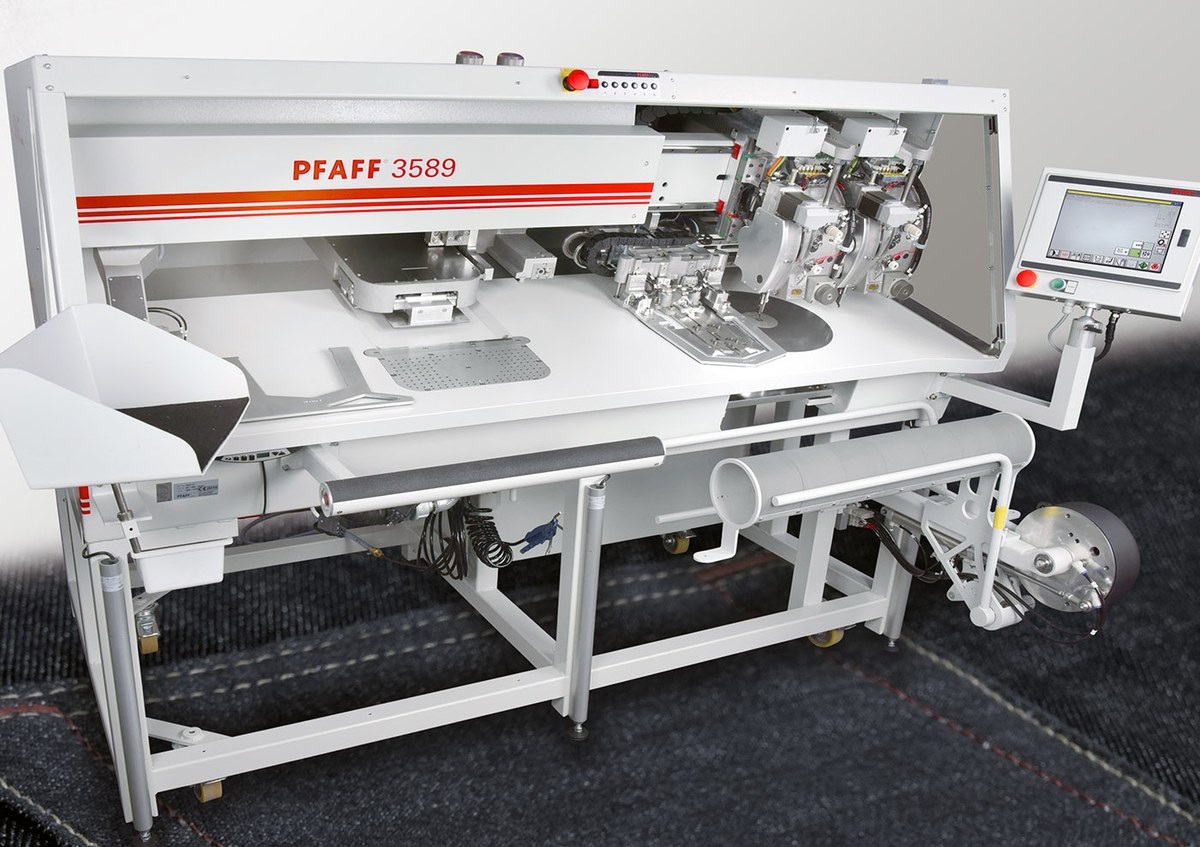

PFAFF 3589
Automatic jeans pocket setter with two machine heads
















„Best possible ergonomics, highest productivity and exceptional operating comfort characterizes this automated machine“
Features
- Consistent high quality and high output - also when using two machine heads with separate colored threads

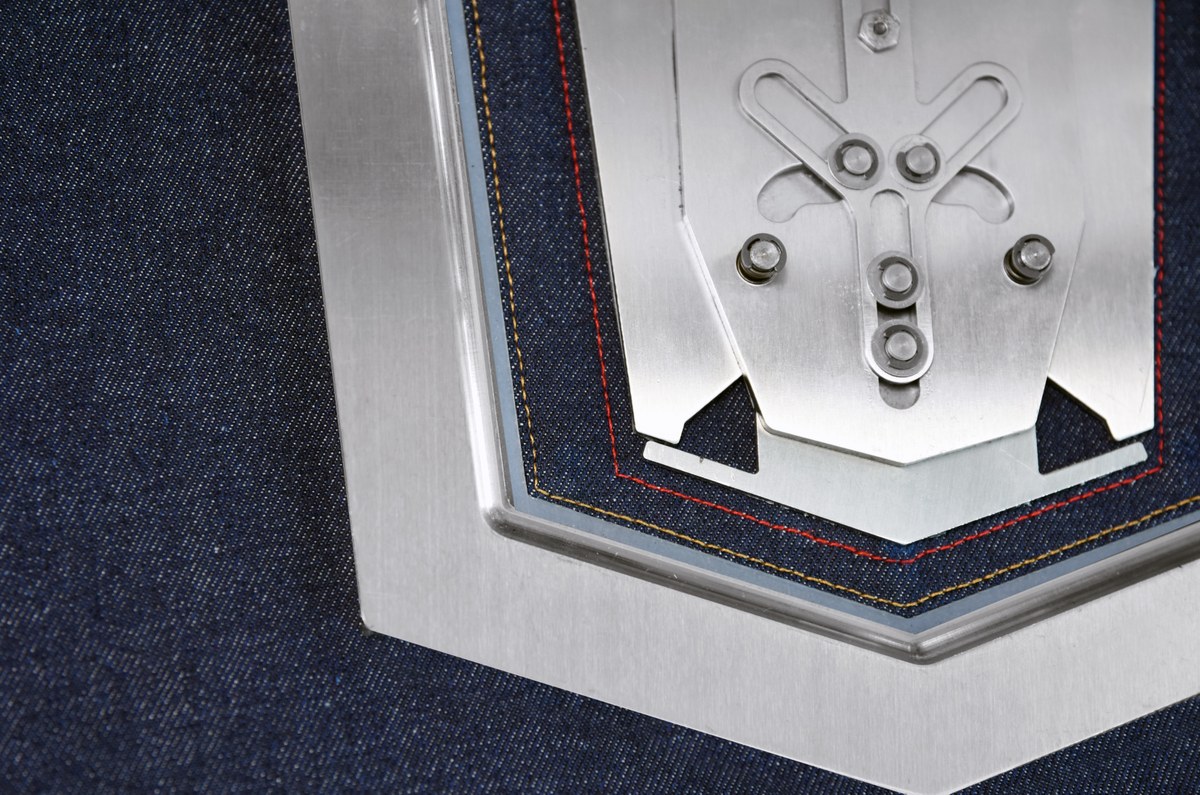

- Forms und templates may be easily interchanged within a few minutes
- Sewing head and hook (XL hook) are synchronized by the electrical axis
- The intermittent material feed reduces hook wear to a minimum and allows stitch lengths of 12,7 mm
- The machine is equipped with an integrated folding station and a stacker
- Sewing parameters can be changed via the touch control panel
- Processing of pre-folded pockets is possible
- Decorative stitches are also possible (using either or two heads)
- On customer request: watch pocket version
- USB-port to download programs and software updates
- Performance: up to 1,300 pairs in 8 hours (2,600 medium sized pockets with 350 stitches)
Coming soon: bartack reinforcement und fullness
Applications
Specifications
Needle system: 134 SUK/SERV 7
Needle size: 120 - 140 Nm
Max. stitch length: 0,5 - 12,7 mm
Max. sewing speeds: 4.000 s.p.m
Max. Sewing area: 300 x 300 mm
Stichtyp: 301 (Lockstitch)
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
