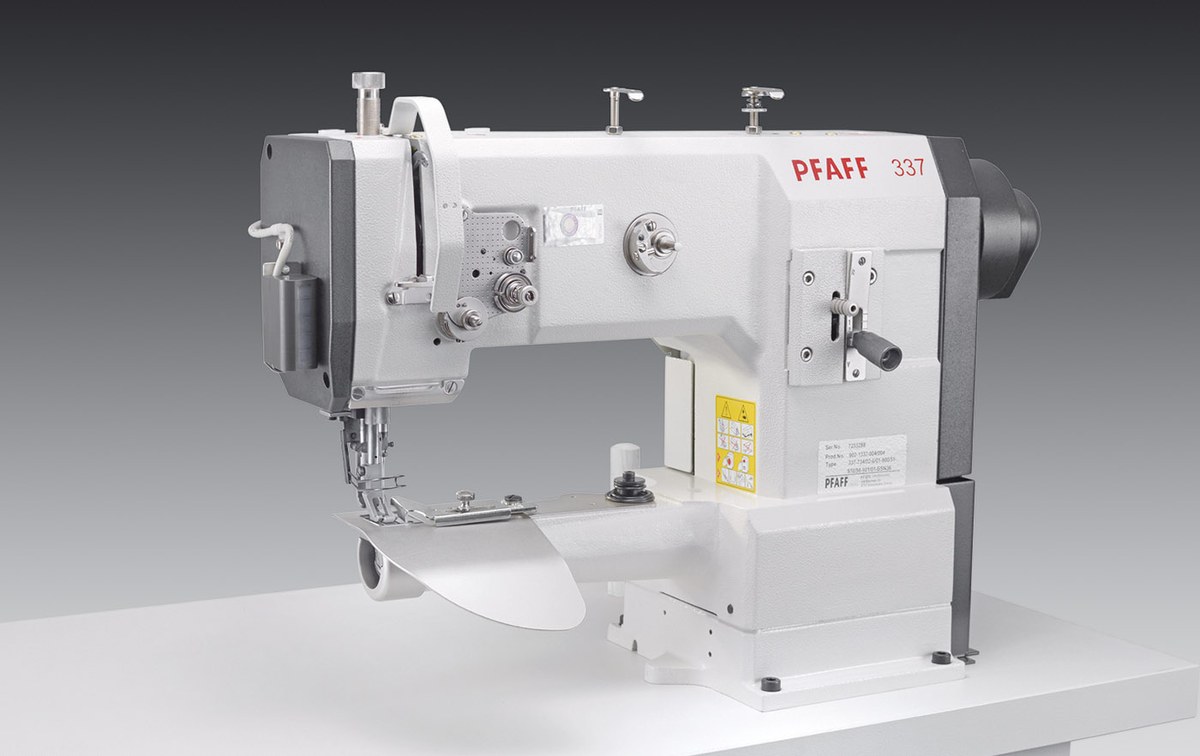

Cylinder-bed sewing machine with drop feed and variable top-feed for sewing-in sleeves with fullness on jackets, ladies’ suits and overcoats
Herren Sakko / Men's jacketDamen Blazer / Women's blazer
Freiarm-Nähmaschine / Cylinder bed sewing machineUnter- und veränderlichen Obertransport / Bottom feed and variable top feedHorizontalgreifer, groß / Horizontal hook, largeStichtyp Doppelsteppstich / stitch type lockstitchAnzahl der Nadeln / Number of needlesFadenanzahl / Number of theadsFadenabschneider / Thread trimmerPressefussautomatik / Automatic presser foot lift


  • Easy and simple maschine with a perfect price/performance relation
  • Trouble free sewing-in of sleeves, with fullness-control unsing the foot pedal
  • High sewing quality due to an even application of fullness
  • High gathering intensity
  • Limitation of the desired maximum gathering-value
  • Fewer bobbin changes when using large hook (G)
  • Special part kitserential top + bottom feed ensure an accurate gathering work
  • Original PFAFF Industrial machines have an additional security label with several security features on the machine head. The advantage of this security label is the protection against growing product piracy

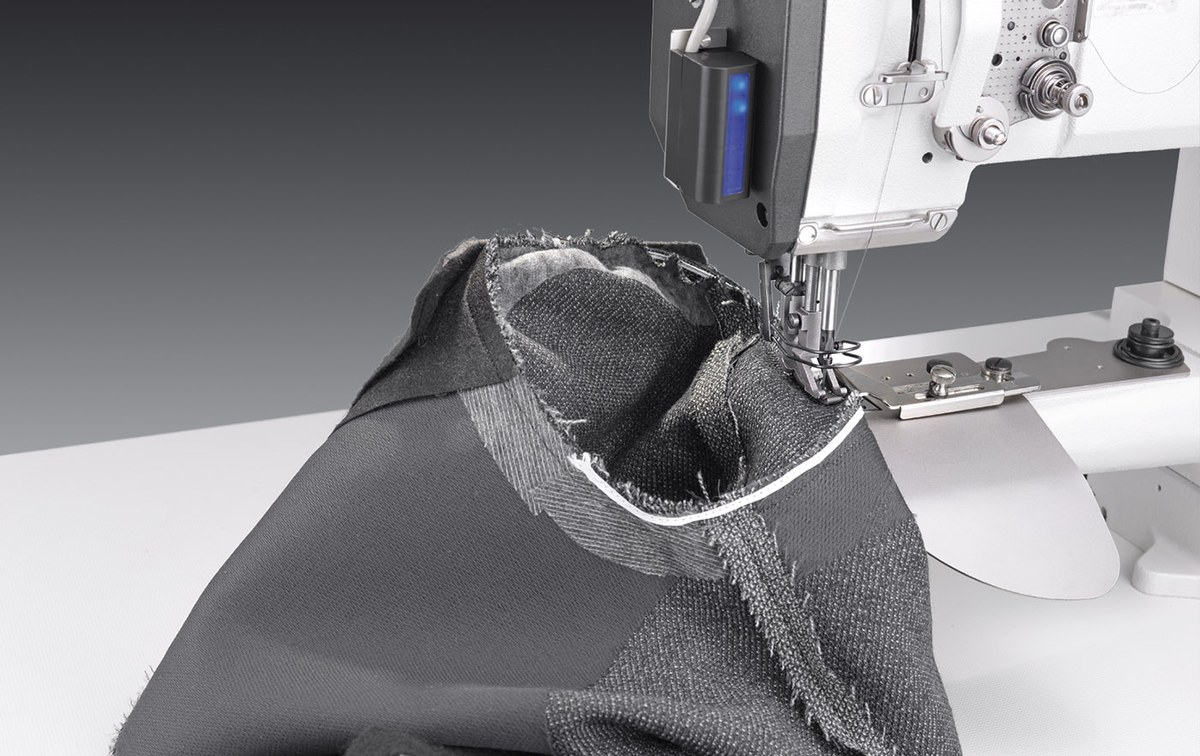

For sewing-in sleeves with fullness on jackets, ladies’ suits and overcoats


Needle system: 134-35 R
Needle size: 80 - 100 Nm
Max. sewing speeds: 2.100 s.p.m
Max. stitch length: 3,6 mm
Top feed stroke: 6,0 mm
Stitch type: 301 (Lockstitch)
Thread size: 40/3
Clearance under the sewing foot: max. 14,0 mm
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
