PFAFF 335

Cylinder-bed sewing machine for industry and handcraft
Taschen / BagsSchuhe / ShoeLederbekleidung / Leather clothing
Freiarm-Nähmaschine / Cylinder bed sewing machineUnter-, alternierender Ober- und Nadeltransport / Unison feedHorizontalgreifer, groß / Horizontal hook, largeStichtyp Doppelsteppstich / stitch type lockstitchAnzahl der Nadeln / Number of needlesFadenanzahl / Number of theadsOption - Fadenabschneider / Thread trimmerOption - Verrieglungs-Einrichtung / Backtracking systemOption - Pressefussautomatik / Automatic presser foot lift

PFAFF 335

The PFAFF 335 is an universal cylinder-bed machine for use in small leather goods, leather garments, upholstery, shoes, etc. Working on tubular or pre-attached articles and standard sewing work on leather wear, bags and leathercraft articles.
P40CD

Features

  • Cylinder-bed machine for working on tubular or pre-attached articles
  • Very good feeding properties due to the unison feed
  • Excellent sewing quality with high perfomance and sewing reliability
  • Precise and consistent stitch setting at large spectrum of materials/fabrics
  • Version 335-G: Fewer bobbin changes due to the large hook (40% more bobbin capacity)
  • Rugged and durable machine construction - Easy to maintain machine concept
  • The high top feed lift (7 mm) allows trouble-free sewing of thick materials and an easy sewing over cross seams
  • Easy loading and unloading – even of bulky material – due to a high fabric clearance of 14 mm
  • Distance of the front edge of the cylinder arm to the needle: 9 mm - Cylinder arm diameter: 51 mm
  • Option: Edge guide (no. 09-009 854-86)


Options

  • Backtacking system
  • Thread trimmer
  • Automatic presser foot lift


Applications

Universal cylinder-bed machine for use in small leather goods, leather garments, upholstery, shoes, etc. Working on tubular or pre-attached articles and standard sewing work on leather wear, bags and leathercraft articles.

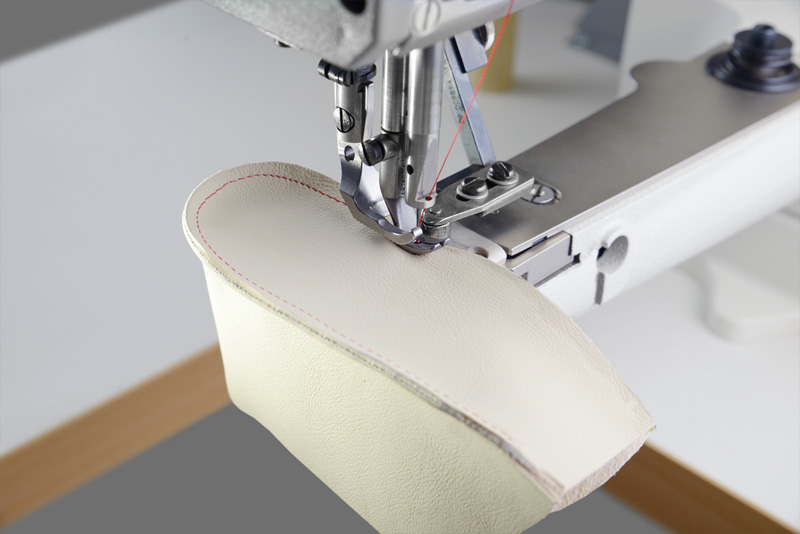

Anwendung 1
Anwendung 2
Anwendung 4

Specifications

Needle system: 134-35 LR
Needle size: 80 - 100 Nm
Max. sewing speeds: 2.800 s.p.m
Max. stitch length: 6,0 mm
Top feed stroke: 7,0 mm
Stitch type: 301 (Lockstitch)
Thread type: synth. 40/3
Clearance under the sewing foot: max. 14,0 mm
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
