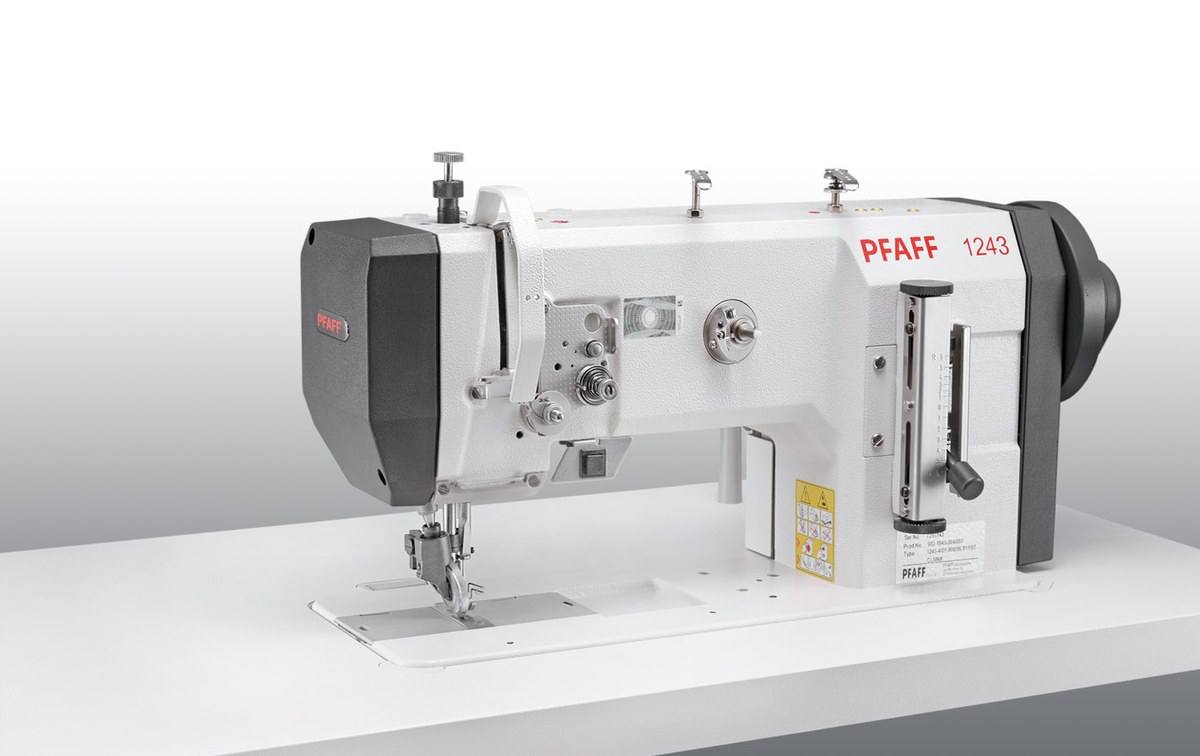

PFAFF 1243

Single-needle, lockstitch flatbed sewing machines with large vertical hook, roller presser driven and drop feed
Schuhe / ShoeOutdoor- und Arbeitsschuhe / Outdoor and work shoesTaschen / Bags
Flachbettmaschinen / Flat bed machinesUntertransport / Drop feedRollfuß (angetrieben) / Roller presser (drived)Vertikalgreifer, groß / Vertical hook, largeStichtyp Doppelsteppstich / stitch type lockstitchAnzahl der Nadeln / Number of needlesFadenanzahl / Number of theadsOption - Fadenabschneider / Thread trimmerOption - Verrieglungs-Einrichtung / Backtracking systemOption - Rollfußautomatik / Automatic roller presser lift

PFAFF 1243



  • Very good seam quality when sewing rope-stitch, ornamental and assembly seams
  • Drop feed and retractable roller presser with direct drive. The roller presser drive guarantees problem-free topstitching of seam intersections without any change of stitch length (subclass -4/01).
  • Constant stitch length, even when sewing over thick spots
  • Superb stitch formation by optimum kinematics and bobbin-case opener
  • Proven, positive power transmission by toothed belt drive
  • The large vertical hook with 60% more thread capacity reduces the number of bobbin changes
  • Hook protected by an easy-to-operate overload clutch incorporated in the machine as standard
  • Automatic hook lubrication
  • Easy-to-set, infinitely variable stitch length
  • Built-in bobbin winder within operator's view
  • During reverse sewing, the roller presser drive is pneumatically disengaged
  • Easy maintenance
  • Similarity of parts throughout the entire series

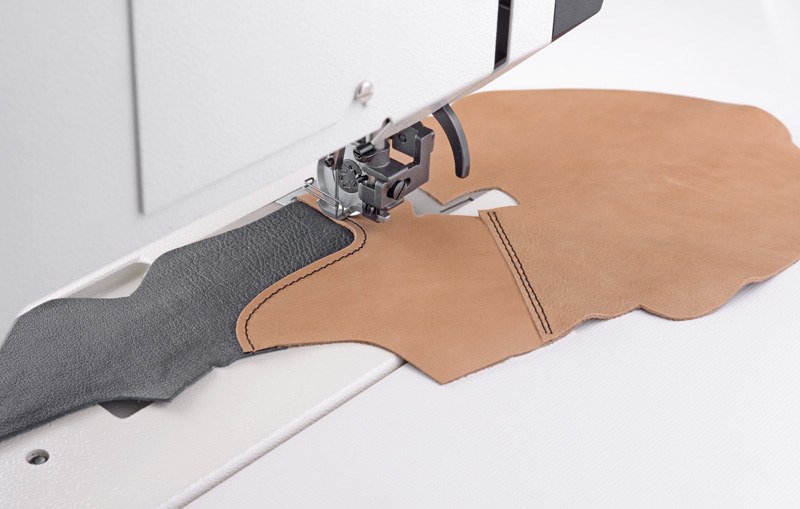

For sewing shoe uppers and other leather articles made from medium-heavy to heavy materials
Anwendung 1243


Needle system: 134 LR
Needle size: Version C: 110 - 140, Version D: 160 - 180 Nm
Max. sewing speeds: Version C: 2.100 s.p.m, Version D: 1.400 s.p.m
Max. stitch length: 8,0 mm
Stitch type: 301 (Lockstitch)
Clearance under the sewing foot: max. 7,0 mm
Clear workspace: 270 x 115 mm
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
