PFAFF 3307-3/01 & 3307-9/02 "Zwilling"

Electronic button sewer with steam wrapping in V-setup

Increase your effectiveness and efficiency. The chainstitch button sewer PFAFF 3307 is reliable, the buttons are firmly attached. The skip stitch sensor and double end stitch knotting device see to that.
The single thread technique results in a neat seam without “birds nest”. This makes it possible to sew soft, modern materials. The production is effective due to high speed, low conversion and processing times: No bobbin change, no need to provide several bobbins with different coloured threads. The high needle bar stroke and the pendulum-type needle bar provide you with a high degree of flexibility. This technology increases the application scope of the PFAFF 3307.
All the most common types of button can be sewn, from the standard type to the self-shank button. The PFAFF 3307 guarantees firmly secured buttons, high output and flexibility.

...free programmable

Knopfvarianten

PFAFF 3307-3/01 Features

Electronically controlled button sewing machine with pendulum needle bar
Simple and easy to operate seam pattern programming on the standard control panel
Blind-stitching with and without stem
Blind stitching and tacking down facings
Sewing on buttons with long stem and stay button (double-breasted coats)
Automatic stem length switch-over
Device for positioning and feeding of the sewing material
Double end stitch knotting
Skip-stitch detection
Stay button plate (fixed) with button receptable 10,5 x 10,5 mm

Applications

Sewing/blind stitch buttons on suits (single and double-breasted), jackets and coats
Anwendung 3307_3/01

Specifications

Needle system: 190
Needle size: 100 -120 Nm
Max. sewing speeds: 2.000 s.p.m
Stitch type: 101 (Chain stitch)
Stem length: 12,0 mm
Sewing area: 8,0 mm (X-Axis) x 12,0 mm (Y-Axis)
Connection voltage: single-phase a.c. 230 V, 50/60 Hz

PFAFF 3307-9/02 Features

Stem length up to 12.0 mm with free choice of stich numbe
Automatic stem length switch-over
Mechanic thread wiper

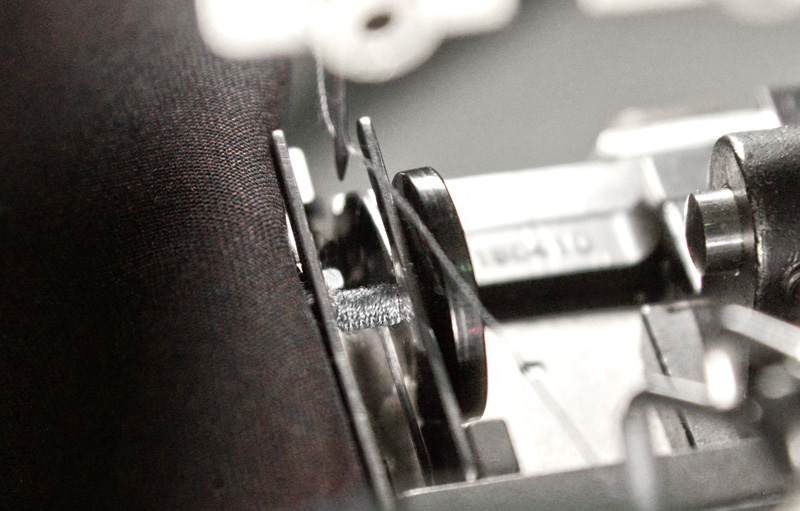

Anwendung Umwickeln

Applications

Stem-wrapping machine, maximum stem length 12 mm
Anwendung 3307-9/02

Specifications

Needle system: 332 LG HK SP
Needle size: 100 -120 Nm
Max. sewing speeds: 1.600 s.p.m
Stitch type: 101 (Chain stitch)
Stem length: max. 12,0 mm
Sewing area: 8,0 mm (X-Axis) x 12,0 mm (Y-Axis)
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
