PFAFF 3519

Automatic sewing machine for sewing one- and two-pointed as well as tapered jacket breast darts
Herren Sakko / Men's jacketDamen Blazer / Women's blazer
Flachbettmaschinen / Flat bed machinesHorizontalgreifer, klein / Horizontal hook, smallStichtyp Doppelsteppstich / stitch type lockstitchAnzahl der Nadeln / Number of needlesFadenanzahl / Number of theadsFadenabschneider / Thread trimmerVerrieglungs-Einrichtung / Backtracking systemStichverdichtung / Stitch condensationPressefussautomatik / Automatic presser foot liftSpulenfadenüberwachung über Sensor / Bobbin thread monitor via SensorOberfaden-Überwachung über Sensor / Top Bobbin thread monitor via sensorX - Y Antrieb / X - Y driveGroßteilestapler / Large part stackerSD-Card Leser / SD-Card readerUSB Anschluß / USB connectionTouchscreen / TouchscreenOption - Kleinteilestapler / Small part stacker

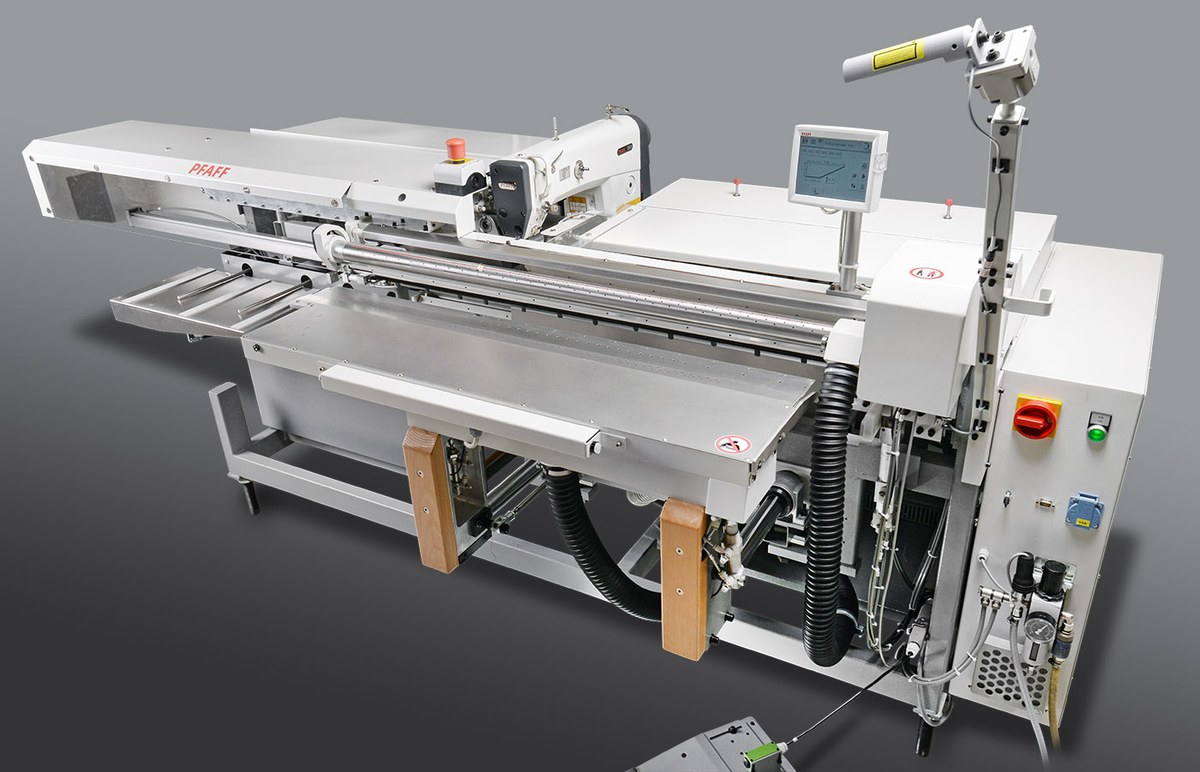

 PFAFF 3519

Quality standards

Since many years PFAFF has been setting trends worldwide with leading manufacturers for men’s outerwear with the jacket breast dart sewer 3519. Hardly any other workplace has acquired such a reputation in the outerwear sector and is as widespread as the automatic dart sewer from PFAFF. We have brought the 3519 up to the latest standard and in doing so, not only have we up-dated the technical standard of the workplace, but have also made it much more attractive and efficient. The PFAFF 3519-4/01 is the ONE and ONLY in the market for that difficult application.

Features

  • Touch-control-panel P1 with integrated SD card reader / USB. The P1 guarantees an intuitive operation
    P1
  • The beginning of the seam can be secured with backtack or with condensed stitches
  • The end of the seam (dart point) is secured with stitch condensation
  • Single-pointed darts are always sewn from the pocket opening to the point. This ensures a slim, neat point with no untidy “dimples”
  • The required dart length and waist-point height can be programmed for every size, and there is no need to change the guide rail
  • By means of a special keyboard, the right dart for every size can be called up direct without any loss of time
  • For accurate sewing of checks and stripes the front part cuttings are positioned exactly by means of a laser beam (on the front side)
  • The darts are cut open by a horizontal slitting mechanism right up to the point
  • The slitting system produces no cutting waste and allows optimum under-pressing of the seam
  • Integrated programming of the seam pattern
  • Quick call-up system for favourite seam programs. Memory for each 100 sewing programs in each with 3 different darts styles
  • Needle-thread detector, piece counter, bobbin thread monitor
  • Stacker, Loading table for overlapping work method

Options

  • Nr. 95-744 852-90  Short parts stacker for children´s jackets and vests
  • Nr. 91-292 305-91  Suction motor
  • Nr. 95-744 808-70 / 895  Device for aligning iron-on reinforcing strip in the dart point

Bügelausgleich

Applications

Single- and two-pointed as well as tapered darts of high durability
Flyer3519

Specifications

Needle system: 134
Needle size: 80 - 100 Nm
Max. sewing speeds: 4.300 s.p.m
Max. stitch length: 0,5 oder 3,0 mm
Condensed stitches at start and endof the seam: 1,0 - 3,0 mm
Darts width: 5,0 - 12,0 mm
Darts length: 80,0 - 395,0 mm
Stitch type: 301 (Lockstitch)
Output in 8h: 2.400 darts or 1.200 jackets (depending on fabric design)
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
