PFAFF 5483 H ...with Revers Stitch Device

Two-thread chainstitch high-speed seamer with drop feed and revers stitch device
Herren Hemd / Men's ShirtDamenblusen / Ladies blouseHerren Sakko / Men's jacketDamen Blazer / Women's blazerHerren Hose / Men's pantsDamen Hose / Women's pantsDamen Rock / Skirt
Flachbettmaschinen / Flat bed machinesUntertransport / Drop feedKettenstichgreifer / Chain stitch looperStichtyp Kettenstich / stitch type chain stitchAnzahl der Nadeln / Number of needlesFadenanzahl / Number of theadsFadenabschneider / Thread trimmerPressefussautomatik / Automatic presser foot liftVerrieglungs-Einrichtung / Backtracking system

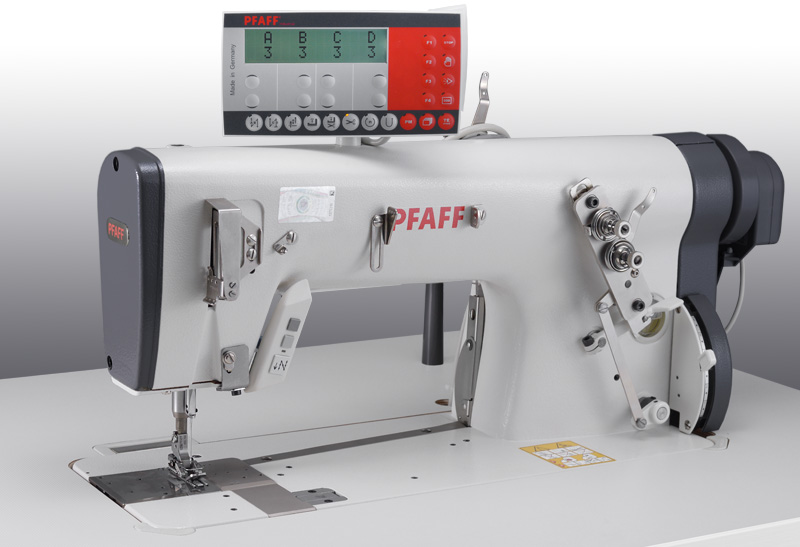

PFAFF 5483 H


  • Evers stitch device
  • Usable in all branches of the sewing industry
  • Optimum sewing reliability, even at maximum speed
  • Very good feed characteristics at low foot pressure
  • Low-noise, low-vibration running, even at top speed
  • Infinitely variable stitch length
  • Bridge gauge set with tandem presser foot
  • Easy maintenance, due to:
    • Centralized fresh-oil lubrication of needle bar and hook drive
    • Maintenance-free anti-friction bearings
    • Enclosed gearcase with long-life pad lubrication
    • Built-in adjustment gauges for quick and reliable adjustment
  • Standardized parts within the 5480 Series, thus lower costs in store-keeping

Stitch type - 401

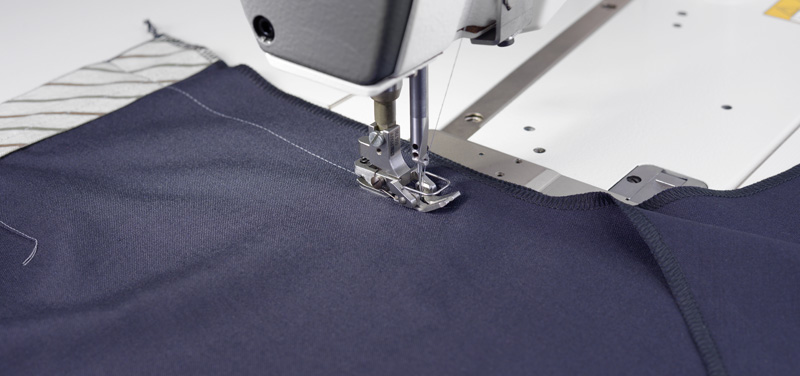

Trousers seat seam with tandem-sewing-equipment (-6/10)


Needle system: 5463-35
Needle size: A-Version 60 - 70 Nm, B-Version 80 - 100 Nm
Max. sewing speeds: 4.800 s.p.m
Max. stitch length: 4,5 mm
Stitch type: 401 (Chain stitch)
Clearance under the sewing foot: max. 9,0 mm
Clear workspace: 260 x 130 mm
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
