PFAFF 5487 -918/55

Two-thread chainstitch high-speed seamer with drop and variable top feed

PFAFF 5487

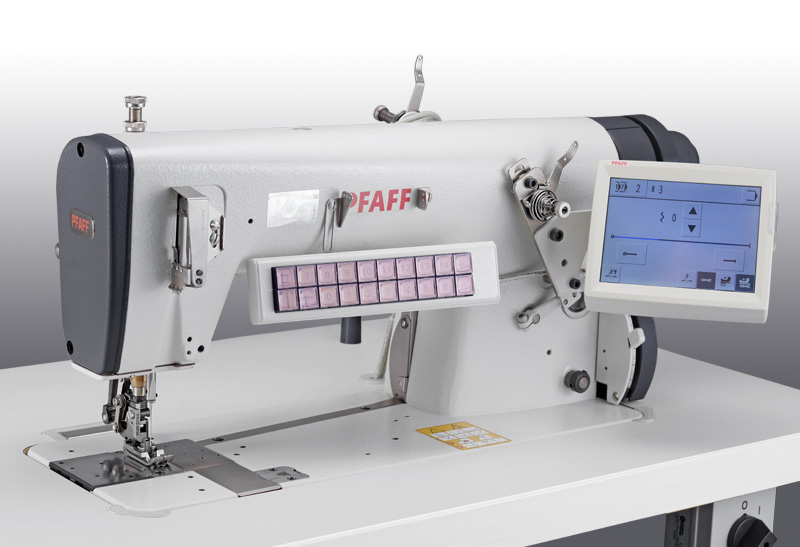

Abbildung 5487 mit Schnellschußfeld und P1-Bedienfeld, Obertransport stufenlos verstellbar über Schrittmotorsteuerung

Features

  • Usable in all branches of the sewing industry
  • Special high-speed seamer with pushing- or pulling-type top feed
  • Fullness application or shift-free sewing, due to variable top feed
  • Separately adjustable pressure of vibrating presser for optimum sewing of difficult fabrics
  • Touch-control-panel P1 with integrated SD card reader. The P1 guarantees an intuitive operation
  • Low-noise, low-vibration running, even at top speed
  • Conveniently arranged controls
  • Infinitely variable stitch length
  • Easy maintenance, due to:
    • Centralized fresh-oil lubrication of needle bar and hook drive
    • Maintenance-free anti-friction bearings
    • Enclosed gearcase with long-life pad lubrication
    • Built-in adjustment gauges for quick and reliable adjustment
  • Standardized parts within the 5480 Series, thus lower costs in store-keeping

Stitch type 1 x 401

Nahtbild1

Applications

Insertion of fullness in upholstery parts
Anwendung

Specifications

Needle system: 4463-35
Needle size:  90 - 110 Nm
Max. sewing speeds: 5.000 s.p.m
Max. stitch length: 4,5 mm
Stitch type: 1 x 401, 2 x 401 (Chain stitch)
Top feed stroke: max. 3,2 mm
Clearance under the sewing foot: max. 7,0 mm
Clear workspace: 260 x 130 mm
Connection voltage: single-phase a.c. 230 V, 50/60 Hz
